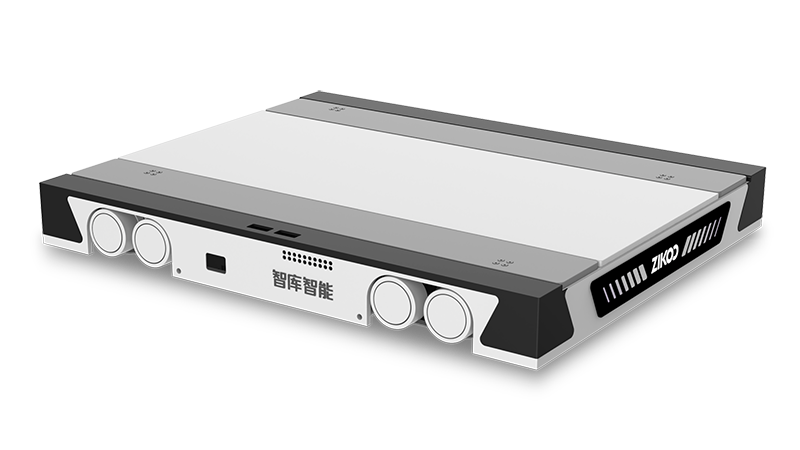

R-bot
Four-Way Pallet Shuttle
R1500B ｜ R1200E ｜ R1200A｜ R1500J｜ R2000B
125mmThickness |
1500kgRated load |
1.6 m/sDriving speed |
2.5sReversing time |
Technological Innovation
Fully mechanical structure
- Full gearbox mechanical transmission, long life and maintenance-free
- Thickness of the body is only 125mm, carrying 1.5 tonnes.
Core brain
- Fully self-developed IP68 rated industrial controllers
- Higher computing power and faster response speed
Maximum speed
- Speed full and empty 1.2/1.6m/s
- Jacking time 1.5s
Accurate positioning
- Positioning accuracy ±1mm, breakthrough cargo space spacing
- RFID + magnetic induction + encoder positioning, high robustness
Scene adaptation
- Cover -25℃~45℃ temperature environment
- Suitable for many sizes of pallets, scene customisation
Reliable energy
- Double BMS intelligent charging protection, energy security
- Extra large battery capacity, 10h long battery life
Network stability
- WIFI6+Lora, more stable dual-link communication
- Achieve the fastest roaming switch, overcome the WIFI dead zone
Safety protection
- Ultra-long distance laser obstacle avoidance, power system STO function
- Single 64-dot matrix pallet skew detection, anti-fall tilt
Product Values
Flexible
The Four-Way Shuttle can access any location within the stereoscopic warehouse without being restricted by fixed paths, making it suitable for a variety of complex scenarios.
Smart Scheduling
It can be integrated with elevators, conveyors, and other equipment, allowing for the efficient scheduling of multiple vehicles on the same floor, as well as smart scheduling among various devices.
Efficient Handling
A highly intelligent design is used to enable auto goods handling and conveying, as well as switching of aisles and layers, thus ensuring efficient operation.
Dense Storage
Ideal for dense storage of pallets, significantly enhancing space efficiency and reducing land costs.
R-bot Product Specifications
Model
Weight
Rated load
Body dimensions
Applicable pallet sizes
-
Kg
Kg
mm
mm
R1500B
275
1500
L1192*W972*H125
1200~1600*
1000~1200
R1500E
270
1500
L1000*W972*H125
1200*800
R1200A
265
1200
L1192*W800*H125
1000*1200
R1500J
270
1500
L1192*W900*H125
1100*1100
R2000B
400
2000
L1250*W1300*H150
1600~2000*
1200~1400
Navigation
Positioning accuracy
Full load/empty speed
Maximum acceleration
Reversing time
Lifting time
-
mm
m/s
m/s²
s
s
RFID+magnetic induction + encoder
±1
1.2/1.6
2
2.5
1.5
RFID+magnetic induction + encoder
±1
1.2/1.6
2
2.5
1.5
RFID+RFID + magnetic induction + encoder
±1
1.2/1.6
2
2.5
1.5
RFID+RFID + magnetic induction + encoder
±1
1.2/1.6
2
2.5
1.5
RFID+magnetic induction + encoder
±1
1.0/1.35
1
3.5
2
Applicable temperature
Battery capacity
Duration at full charge
Full charging time
Type of batteries
℃
V/Ah
h
h
-
-15~45 | -25~0
48V/40Ah | 48V/30Ah
8~10 | 6~8
1.2 | 2
lithium iron phosphate
-15~45 | -25~0
48V/40Ah | 48V/30Ah
8~10 | 6~8
1.2 | 2
lithium iron phosphate
-15~45 | -25~0
48V/40Ah | 48V/30Ah
8~10 | 6~8
1.2 | 2
lithium iron phosphate
-15~45 | -25~0
48V/40Ah | 48V/30Ah
8~10 | 6~8
1.2 | 2
lithium iron phosphate
-15~45 | -25~0
48V/40Ah | 48V/30Ah
6~8 | 5~7
1.2 | 2
lithium iron phosphate
EU CE Marking certification
-
CE
CE
CE
CE
CE
Scenario customisation:：Cold Chain Model
- The lithium battery specialized for low-temperature environments ensures stable operation at -25°C / The combination of RFID and laser positioning facilitates easy maintenance
- Enhanced security protection with a special PCBA coating / Low-temperature charging port design
- It is highly durable, with a battery life of 6-8 hours, and supports auto charging
- A high level of intelligence, featuring smart operation/scheduling/power management
Scenario customisation:New Energy Model
- Anti-static design
- The wheels are fully cushioned with rubbera
- The entire vehicle is devoid of materials like copper, zinc, nickel, and lead, and is dust-proof
- The structural components are blackened and the racks are stainless steel
Functional Module
Emergency rescue

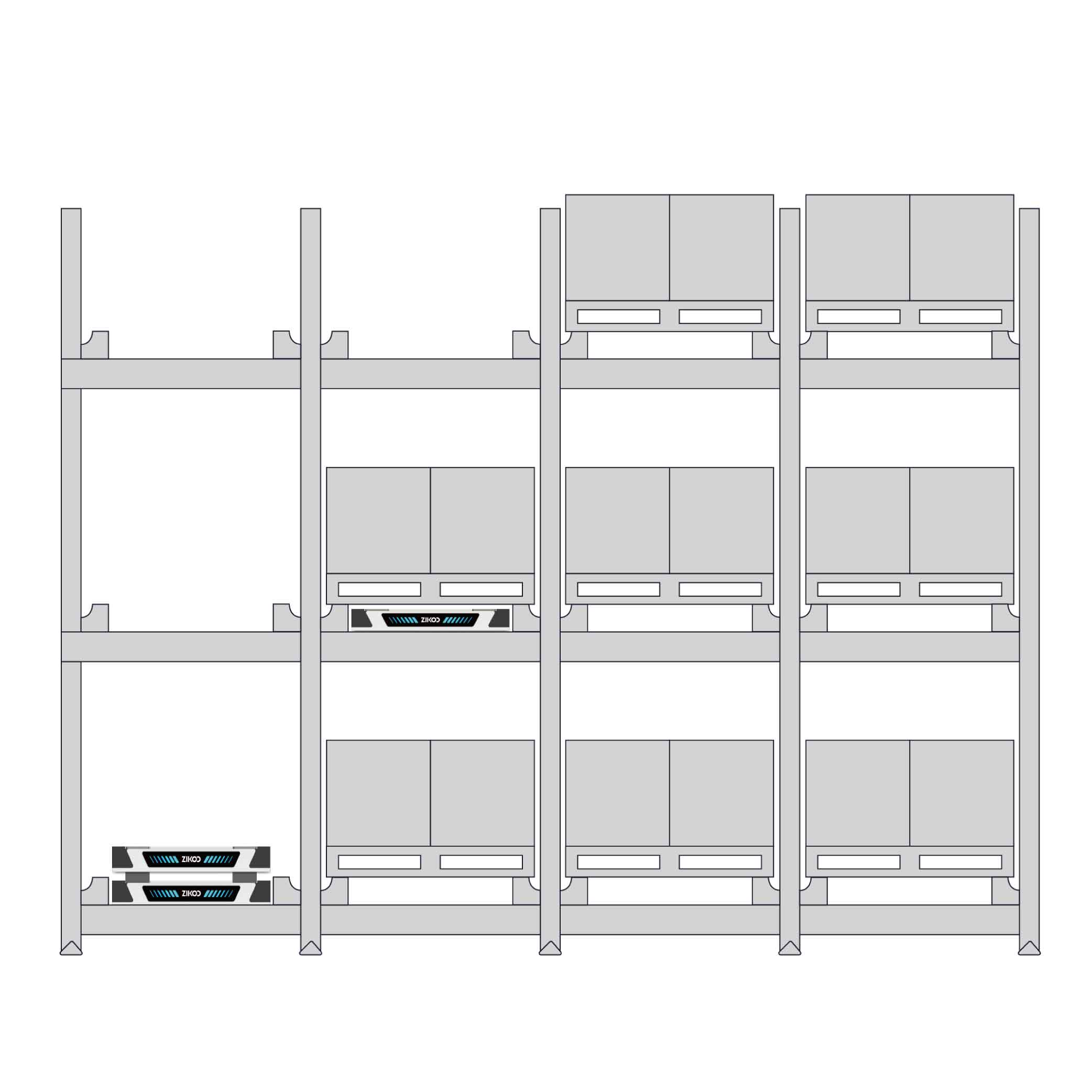

With specialized rescue tooling, a malfunctioning shuttle can be lifted, removed from the storage rack and transported to a repair facility by coordinating with other shuttles. This process is both streamlined and efficient, enabling the rapid completion of rescue operations in just 10 minutes.
The modular design enables rapid fault diagnosis within 5 minutes. With readily available spare parts, damaged components can be replaced in 20 to 60 minutes, allowing the shuttle to return to service promptly.

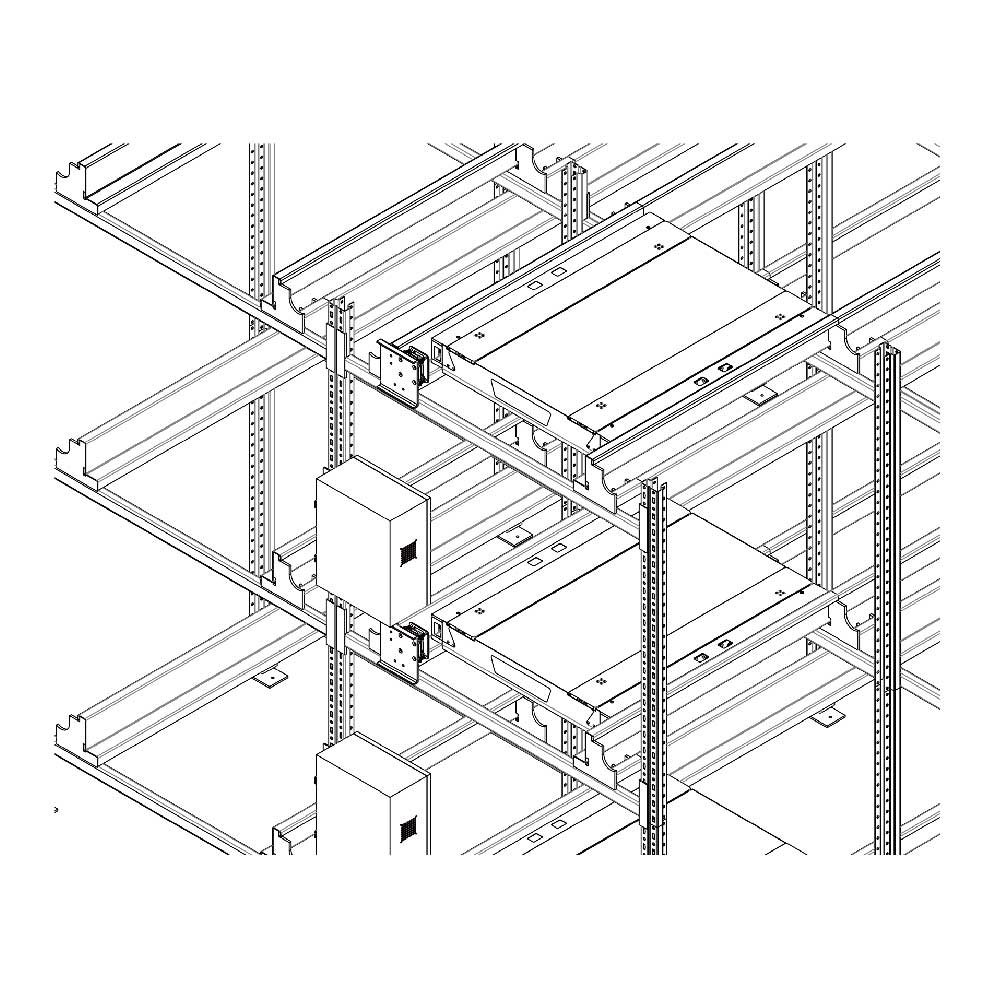

Charging pile
The charging stations feature a connector designed for over 100,000 plug-in cycles, ensuring safety, stability and reliability.
The independently developed charging strategy accommodates a wide range of temperatures, from -25°C to 45°C, enhancing charging safety. Real-time monitoring capabilities cover the status of the charging stations, and include protective measures against short circuits, overload, overheating, overvoltage and overcurrent.

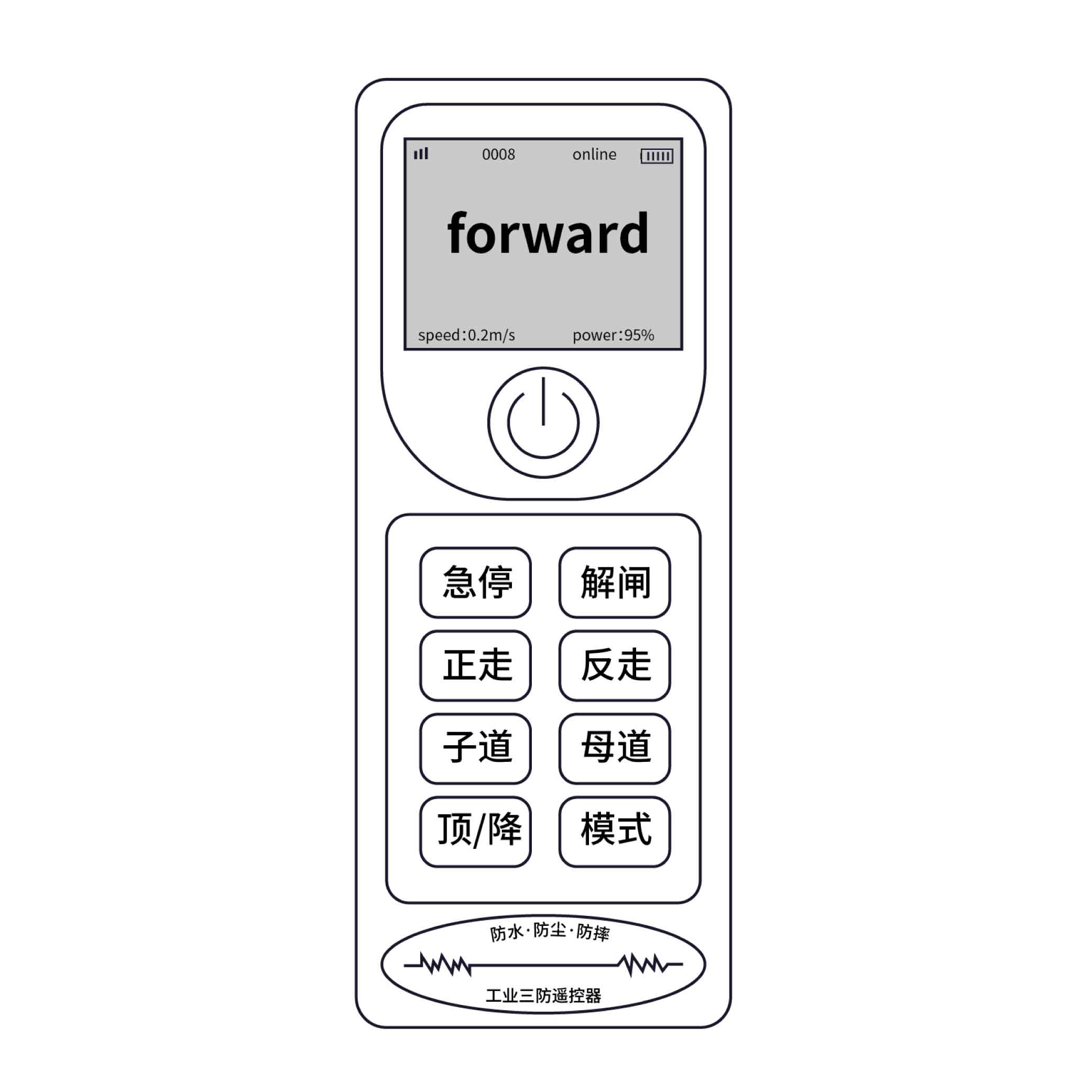

Remote controls
Operating independently of WiFi networks, our remote control uses a long-distance communication solution that ensures extended transmission ranges and improved penetration within storage racks.
It features a status display and a user-friendly interface for easier interaction. The remote control system can connect to multiple devices and only requires one unit per warehouse to manage them all.
