H-bot
High Speed Elevator

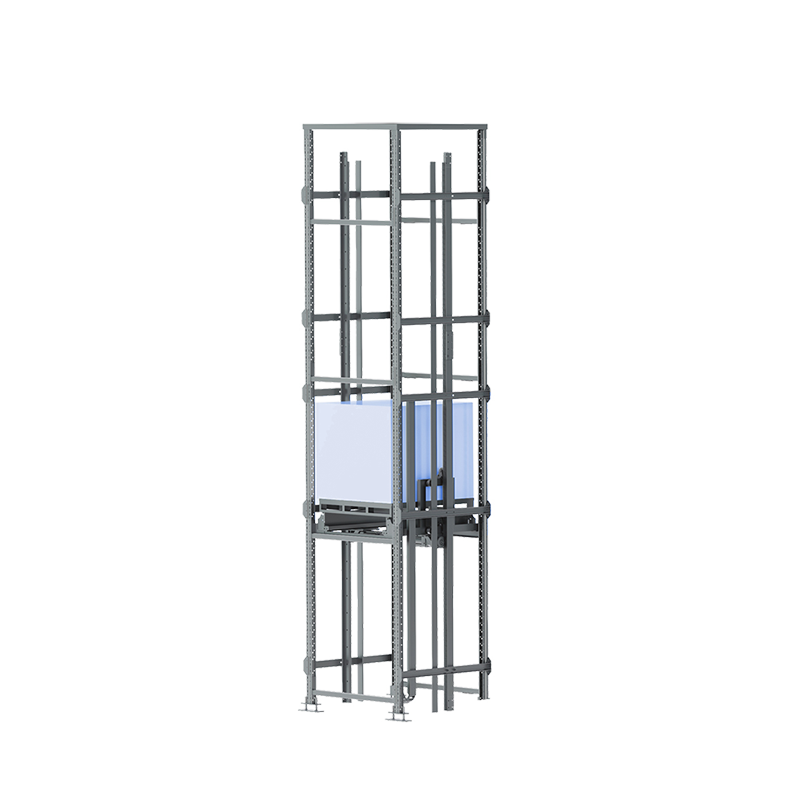

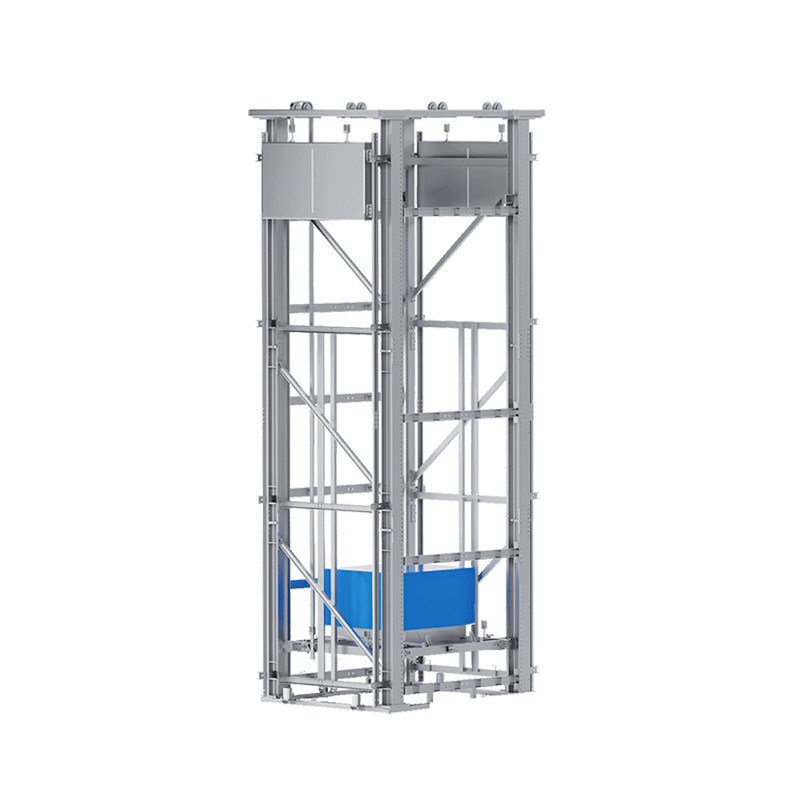

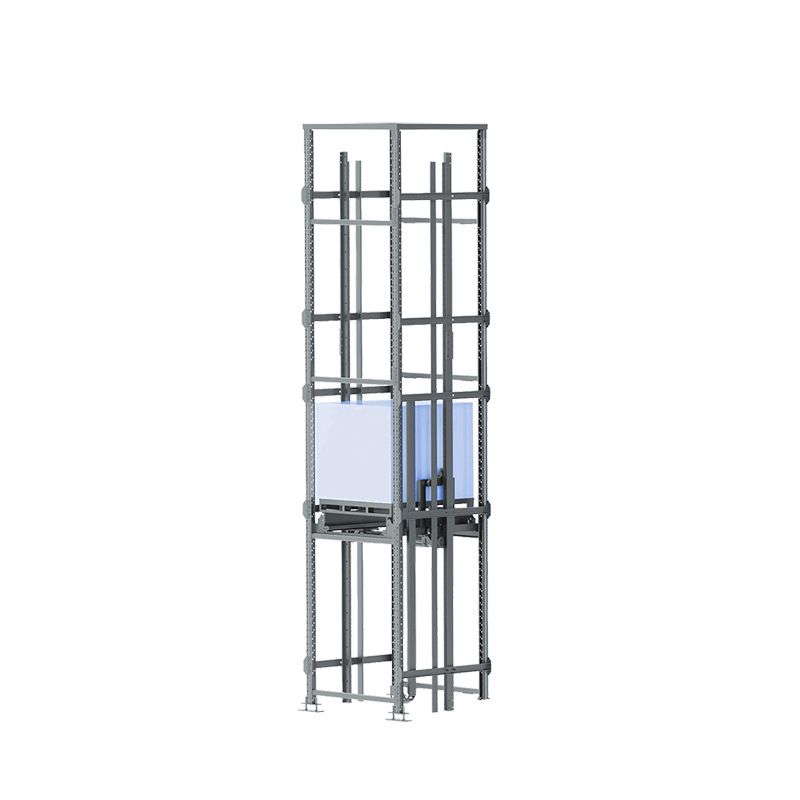

Standard ｜In rack

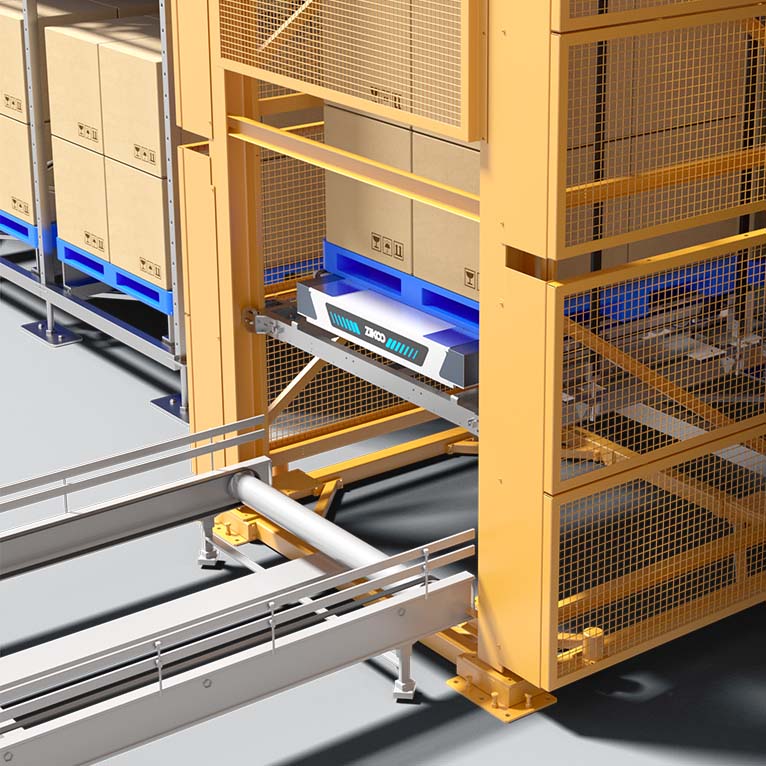

The H-bot High-Speed Elevator is a layer-changing transport equipment of Zikoo Smart designed for high-density pallet storage systems. It enables precise, stable, and efficient handling of goods, as well as cross-racking handling of four-way shuttles.
2000KGRated Load |
-25 – 45℃Applicable Temperature |
0.5 -1.2 m/sLifting Speed |
1 mmPositioning Accuracy |
Technological Innovation
Highly Compatible
Integral design perfectly matches the operational and safety requirements of intelligent four-way shuttles.
Precise and Efficient
Servo motor four-axis lifting, high-precision transmission design, fast, accurate and stable operation and positioning.
Intelligent Scheduling
Interconnected with other equipment through the upper software, flexible scheduling and efficient operation.
Rapid deployment
Modular design, can be quickly disassembled, greatly reducing the installation and commissioning time.
Flexible customisation
Rated load of 2 tonnes, height of 30 metres or less, deployment height can be customised according to the project.
Module Options
Standard four-way shuttle changing platform, at the same time can be equipped with two-way shuttle and connecting conveyor line.
H-bot Product Specifications
Model
Lifting height
Rated load
Operating temperature
-
m
Kg
℃
H2000E
≤30m
2000
-25~45
H1500I
≤30m
1500
-25~45
Lifting speed
Lifting acceleration
Control mode
Transmission
Positioning accuracy
Positioning method
Height of the bottom loading surface from the ground
m/s
m/s²
-
-
mm
-
mm
0.5~1.2
0.3
servo
rack and pinion
±1
encoder positioning
370~530
0.5~0.9
0.3
servo
rack and pinion
±1
encoder positioning
430
4-way shuttle changing platform
Conveyor line
Connecting two-way shuttle
-
-
-
standard
optional
optional
standard
optional
optional
