U-bot
Omnidirectional Stacker Robot
U1045 ｜ U1060 ｜ U1080
The U-bot Omnidirectional Stacker Robot is a smart storage robot independently developed by Zikoo Smart. This “pallet-to-person” storage and picking system offers a multitude of benefits including the ability to maneuver around narrow aisles, precise positioning, flexible deployment, and adaptable functionality.
0-8 mLifting height |
1370 mmMinimum turning radius |
1000kgRated load |
2100 mmMinimum aisle width |
Technological Innovation
New shape
U-shaped wrapped body, preventing cargo from tipping and slipping
Precise Positioning
Dual laser SLAM navigation, QR code + reflector fusion for more accurate positioning
Intelligent identification
Equipped with 3D depth camera, intelligent identification of pallet position and automatic deviation correction
Omni-directional travelling
New “double rudder wheel” chassis, faster and more stable travelling
Extreme lifting
Imported channel steel safety gantry, lifting height 0m-8m, no loss of load within 6m
Mechanical relocation device
rack and pinion forward moving door frame, forward moving speed increased by 100%
Product Values
New Design
The innovative U-shaped design offers enhanced safety and efficiency
New Efficiency
Fast driving and accelerated picking improve the operation efficiency by 2-3 times
New Density
The ultra-high-density pallet storage leads to an increase in storage density by 30%-500%
New Smart Technologies
Advantage Comparison
Large turning radius for
manual driving
Travelling in both directions
Large turning radius
Omni-directional driving
360° in-situ rotation with small turning radius
Width of lane ≥ 3.2 metres
Low storage density
Width of the lane ≥ 3.2 metres
Lower storage density
Width of tunnel ≥ 2.1m
High storage density
High efficiency
Low efficiency
High efficiency
Upgraded by more than 40 per cent
U-bot Product Specifications
Dimension
Rated load
Self-weight
Lifting height
Pallet
2198*1784*2100mm
1000kg
3000kg

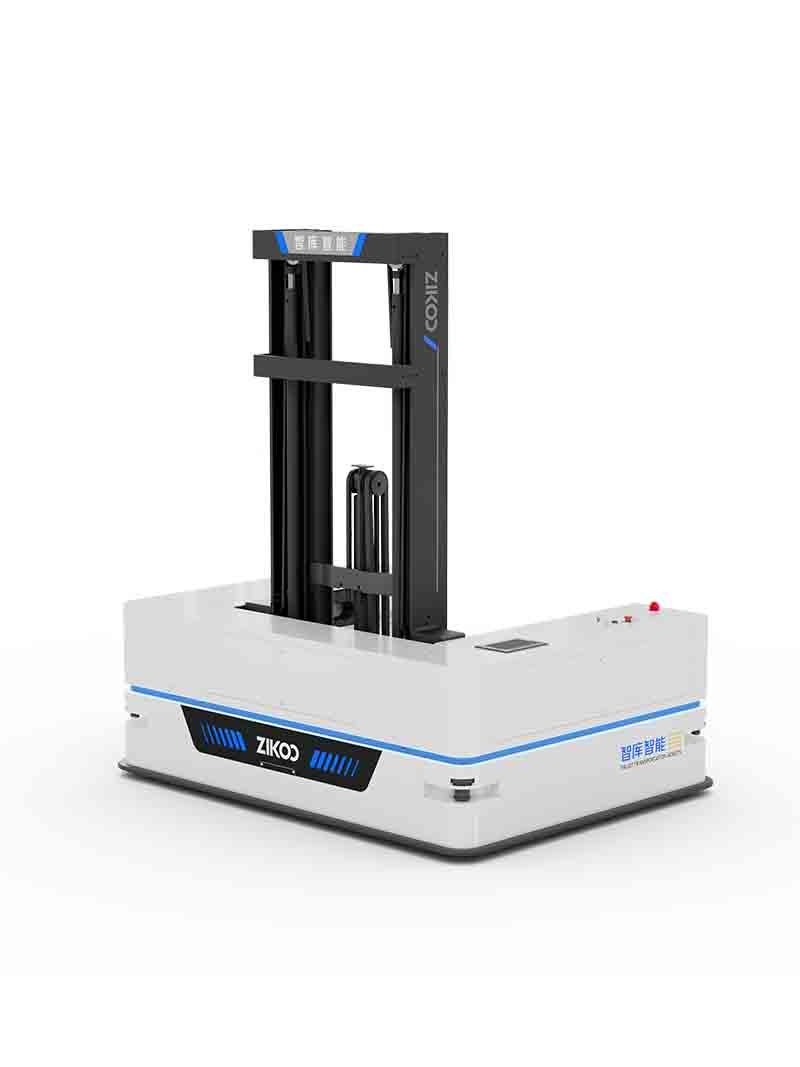

4500mm
1000-1200*800-1200mm
2198*1820*2685mm
1000kg
3300kg

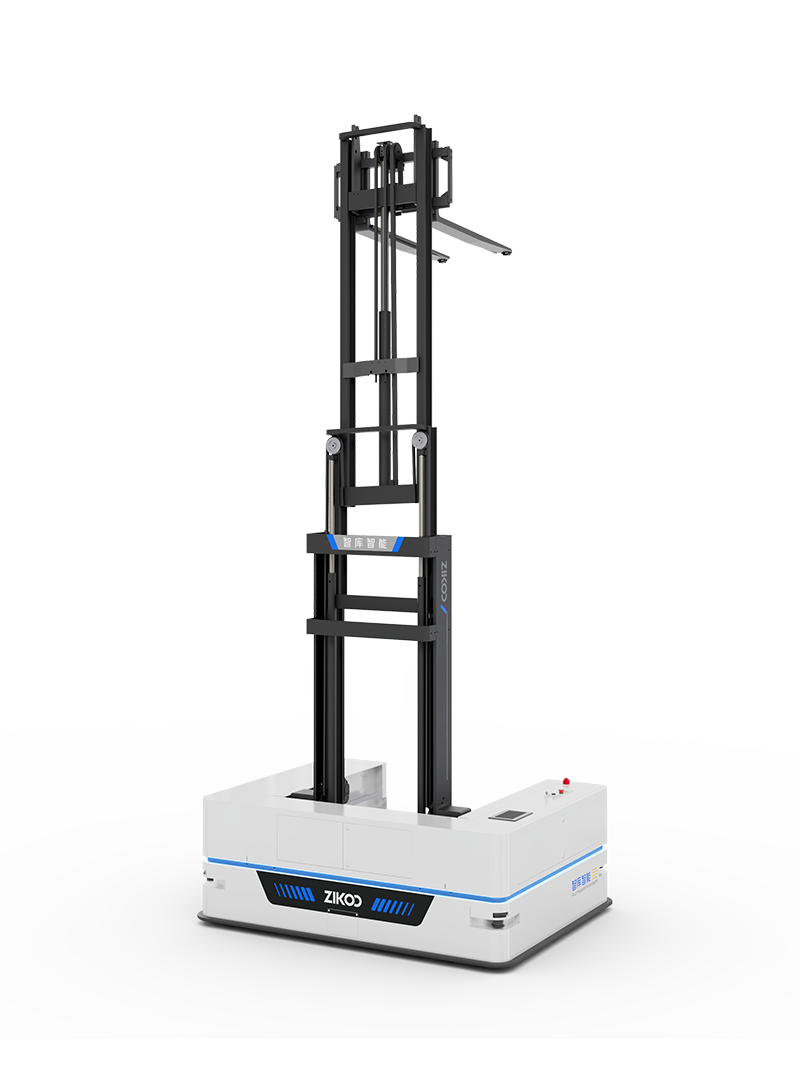

6000mm
1000-1200*800-1200mm
2198*1820*3465mm
1000kg
3500kg

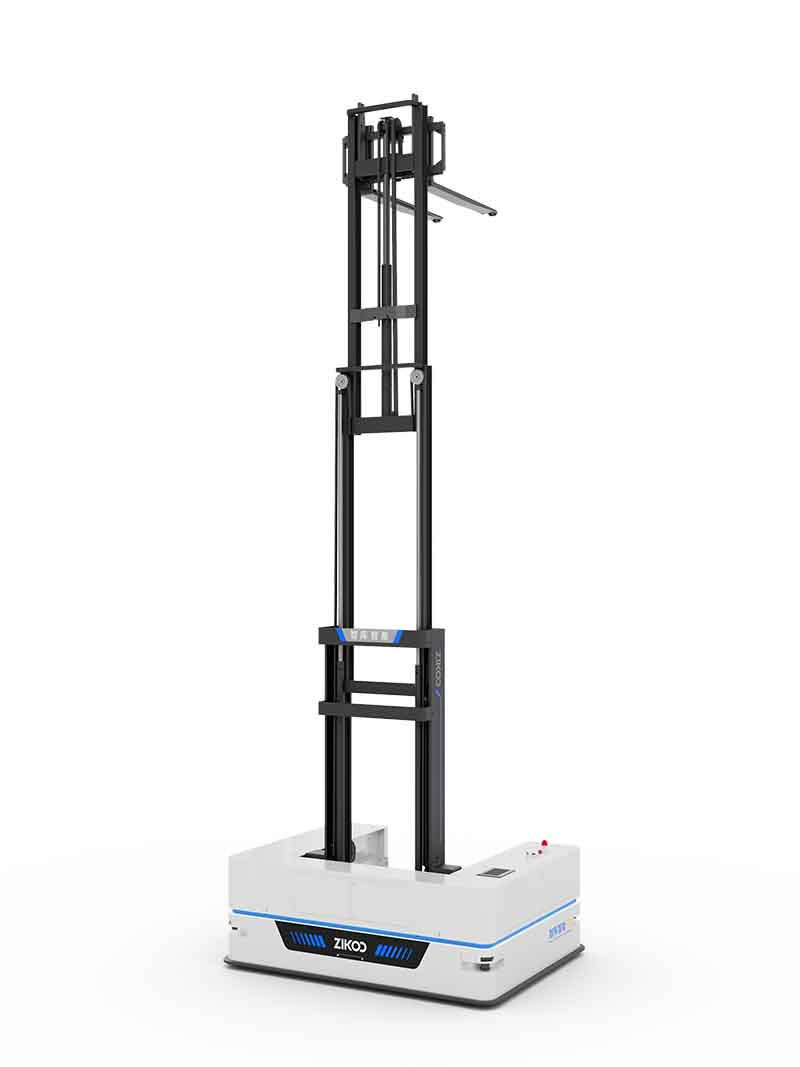

8000mm
1000-1200*800-1200mm
Maximum travelling speed
Minimum turning radius
Minimum aisle width
Positioning method
Travelling positioning accuracy
Lifting speed (empty/full load)
Lowering speed (empty/full load)
Maximum forward speed
1.5m/s
1370mm
2100mm
Dual laser SLAM hybrid navigation
±10mm
0.25/0.2m/s
0.2/0.2m/s
0.3m/s
1.5m/s
1370mm
2140mm
Dual laser SLAM hybrid navigation
±10mm
0.25/0.15m/s
0.2m/0.2/s
0.2m/s
1.5m/s
1380mm
2140mm
Dual laser SLAM hybrid navigation
±10mm
0.25/0.15m/s
0.2/0.2m/s
0.2m/s
Applicable temperature
Battery capacity
Endurance time
Charging time
Battery type
48V/210Ah
6~8h
2~3h
-10~45°C
lithium iron phosphate
48V/210Ah
6~8h
2~3h
-10~45°C
lithium iron phosphate
48V/210Ah
6~8h
2~3h
-10~45°C
lithium iron phosphate
