U-bot
Narrow aisle storage system

It can be used for whole pallet in and out of the warehouse, also can be piece picked in and out of the warehouse, compared with other counterbalanced weight stacking AGV, comprehensive efficiency increase of 30%, extremely narrow aisle travelling, easy deployment, fast delivery, is the best choice for customers who want to improve the storage density of the traditional manual forklift warehouse renovation.

download pdf

The Advantages of U-Bot Storage System

U-bot storage system adopts U-bot Omnidirectional Stacker Robot with selective rack, which can be used for whole pallet in/out storage, and can also be used with picking workstations to carry out piece picking in/out storage. U-bot’s extremely narrow travelling aisle of 2.1m dramatically increasing the utilization rate of lateral space, and its lifting height of 0-8m greatly improves the utilization rate of longitudinal space. At the same time, combined with PTP Smart Warehouse Software, it can realize storage heat level management, intelligent stock management at spare time, and greatly improve the efficiency and flow of in/out storage, which is a kind of storage and picking solution with high manpower efficiency and fast ROI.

Ultra High Storage Density

Extremely narrow travelling aisle of 2.1m, dramatically increasing the utilization of lateral space
Lifting height 0-8m, dramatically increasing the utilization of longitudinal space
Multi-containers can be mixed in multiple floors, fully releasing the floor space.

Ultra-high Operating Efficiency

No-unpacking put-away to suit more customer needs
Faster travelling speeds, faster fork extension speeds
Smaller turning radius, higher turning efficiency

Ultra-High ROI

1-2 year ROI
Easy Deployment, Fast Delivery
Traditional manual forklift warehouse conversion, no need to replace racks

Flexible Deployment

Flexibility to increase or decrease the number of robots according to order requirements
Global planning, step-by-step implementation, upgrading without stopping production
Supports multiple navigation methods, adapting to changes in the environment

In Action

Receiving Process

STEP 1

Incoming goods, manual tally, consolidate pallet;

STEP 2

The PDA operates inbound storage, the WMS system allocates storage positions according to the goods and connects with the U-bot scheduling system RCS to generate inbound transfer tasks;

STEP 3

U-bot scheduling system RCS schedules idle U-bots to go to the inbound position to transfer the inbound goods;

STEP 4

U-bot transfers the inbound goods to the designated cargo position;

STEP 5

U-bot mission completed, report of goods in position, WMS system updates information on storage positions in the rack storage area, U-bot recharges or waits for the next mission.

Dispatch Process

STEP 1

According to the information of outbound order, WMS system generates outbound task;

STEP 2

U-bot scheduling system RCS schedules the idle U-bot to go to the storage point of the outbound goods to take out the goods;

STEP 3

U-bot carries out the goods to the outbound cache placement point, the task is completed, feedbacks the outbound goods in place information, U-bot recharges or waits for the next task, and the WMS system updates the information about the storage space in the storage area.

STEP 4

U-bot transfers the inbound goods to the designated cargo position;

Features and Benefits

Optional Gantry Height Support

According to the warehouse height, U-bot supports optional gantry height (4.5m/6m/8m)

Configuration of 3D Depth

Configuration of 3D depth camera, intelligent recognition of pallet position, automatic correction of deviation

Intelligent Charging Station

Equipped with intelligent charging station, real-time monitoring of charging and safety protection

Multiple Containers

Can be integrated with various container sizes to accommodate the storage of items ranging from large to small, catering to diverse types and small batch needs

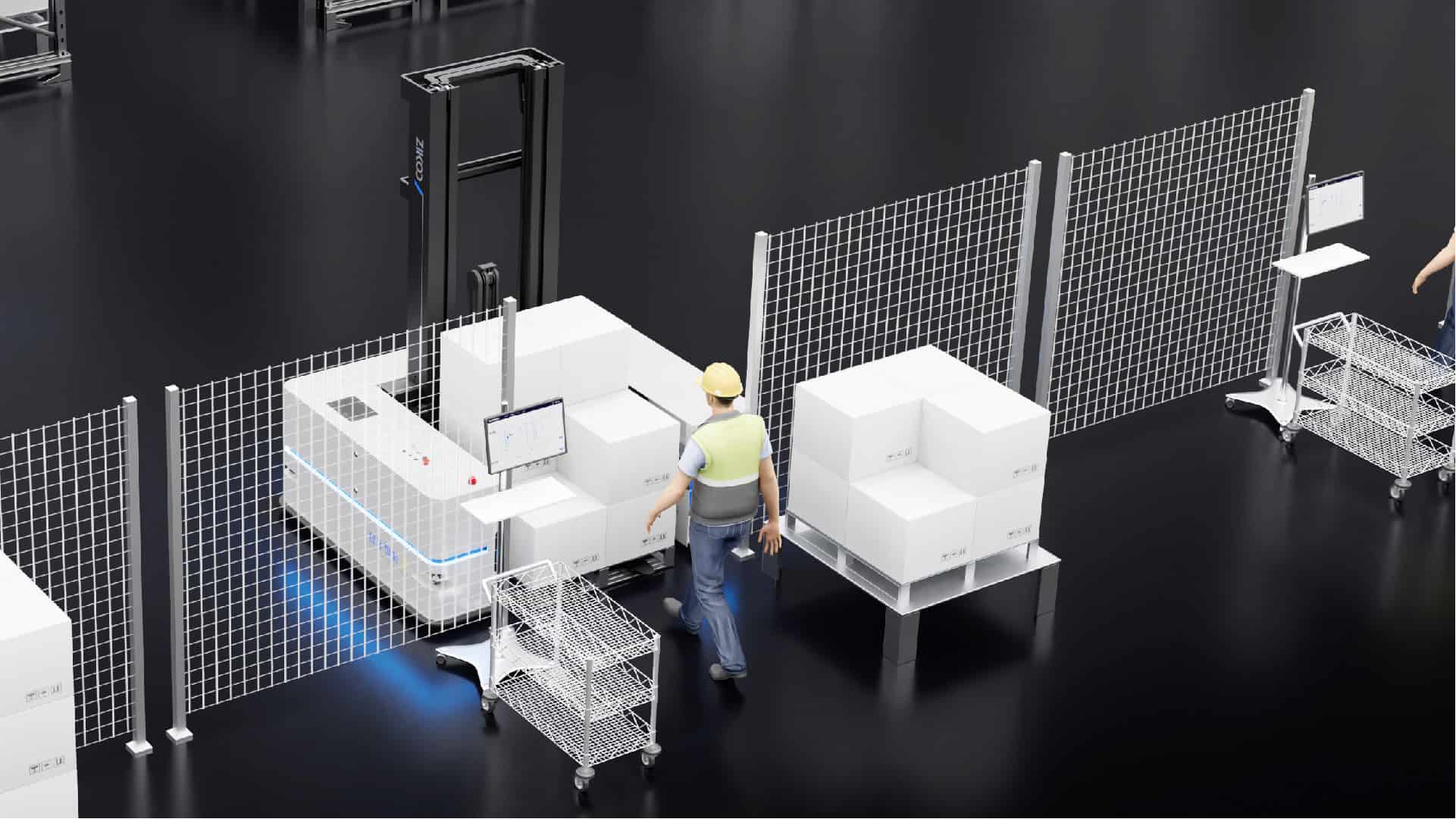

Multi-Functional Workstations

Compatible with multi-functional workstations for efficient piece picking, this system also facilitates full pallet handling for warehouse ingress and egress, seamlessly integrating with docking platforms for loading purposes
